Levelogger 5

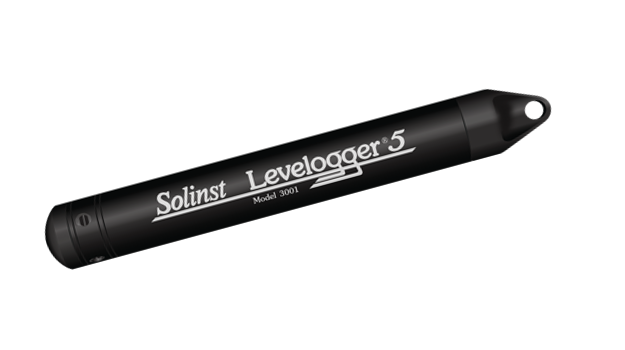

Solinst Model 3001 Levelogger 5 Series
The Levelogger 5 instruments are a highly accurate, self-contained water level & temperature datalogger specifically designed for a wide range of field programs.
Applications:
- Short-term and long-term water level monitoring.
- Hydrogeological investigations (slug, pump, or step-tests).
- Long-term water level monitoring in groundwater wells and surface water bodies.
- Stream gauging, lake, and reservoir management.
- Watershed, drainage basin, and recharge monitoring.
- Wetlands and stormwater run-off monitoring.
- Water supply and tank level measurement.
- Mine de-watering and landfill leachate management.
The Levelogger 5 instruments offer users a variety of customizable sampling options and installation methods from simple wire-line or rope, direct read communication, and Bluetooth communication, to remote telemetry access.
Features:
- Rugged design and can withstand 2x over-pressurization
- Easy to use software interface
- Memory capacity of up to 150,000 readings
- Customizable sampling modes
- Battery life = 10 years based on a 1-minute sampling rate
The Levelogger 5 instruments are available in several different pressure ranges:
| Model | Pressure Range |
| Barologger | Air Only |
| M5 | 5 m (16.4 ft.) |
| M10 | 10 m (32.8 ft.) |
| M20 | 20 m (65.6 ft.) |
| M30 | 30 m (98.4 ft.) |
| M100 | 100 m (328.1 ft.) |
| M200 | 200 m (656.2 ft.) |
The Levelogger 5 instruments can be connected to the full Solinst software by the USB optical reader with a field PC, this allows the user to perform instrument programming, starting/stopping, and data downloading:

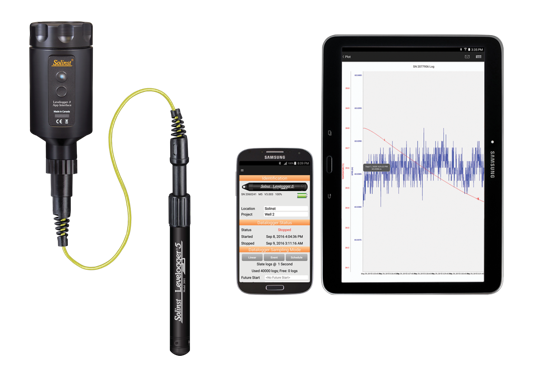

The Solinst App Interface device allows users the ability to use an iOS or Android smartphone to connect via BlueTooth to perform the same functions as a field laptop:
Resources:
