Levelogger 5 LTC

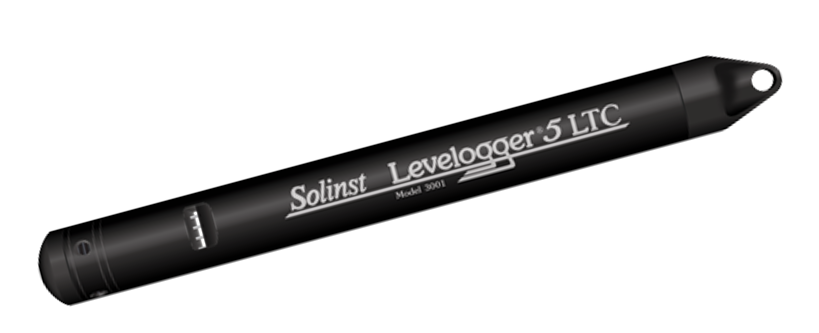

Solinst Model 3001 Levelogger 5 LTC
The Levelogger 5 LTC is a self-contained conductivity, water level, and temperature datalogger.
Applications:
- Plume remediation monitoring and studies
- Tracer tests
- Agricultural and stormwater runoff monitoring
- Leachate monitoring at landfills, mine tailings, waste disposal storage sites, and more
- Saltwater intrusion and soil salination monitoring
The conductivity sensor is a 4-electrode platinum sensor, with autoranging capabilities. The minimal maintenance, sealed Levelelogger 5 LTC is simple to clean and calibrate, even in the field.
Features:
- Rugged design
- Easy to use software interface
- 4-electrode platinum conductivity sensor
- Customizable sampling modes
- Single or multi-point conductivity calibration
- Memory capacity of up to 100,000 readings
The Levelogger 5 LTC instruments are available in several different pressure ranges:
| Model | Pressure Range |
| M5 | 5 m (16.4 ft.) |
| M10 | 10 m (32.8 ft.) |
| M20 | 20 m (65.6 ft.) |
| M30 | 30 m (98.4 ft.) |
| M100 | 100 m (328.1 ft.) |
| M200 | 200 m (656.2 ft.) |
Resources:
